Motor and Wire for Meyer and Buyers Salt Spreaders

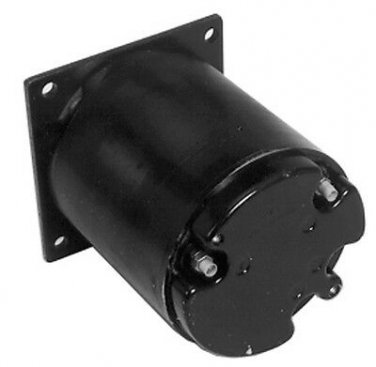

1) 12 V Motor -
•Direct Drive motor for low amp draw with maximum torque
• Heavy duty sealed ball bearing.
•(Works with in-cab solid-state speed control.)
•Woodruff key
•Rotation: Bi-Directional
•Field Housing O.D.: 2.823 in.
•Overall Length: 6.941 in.
•Shaft Outside Diameter: 0.500 in.
•Shaft Style: Includes Keyway and Woodruff Key.
•Terminal 1 Size: 1/4 - 20
•Terminal 2 Size: 1/4 - 20
•Housing Finish: Field case is black
•Weight: 12.43 lbs
•Includes square mounting plate with 4 mounting holes
•(Meyers) OEM#36218, 36402 & (Buyers) OEM#0202000
Cross References:
M-2100, M-5000, W-8800, 4854420M048HM
HM4854420, HM02223, 485440, 690-060, 0462800108, 9107, LMY0002
36218, 0202000, 430-21001, 26232A, B422340X6329
Lead Wire and
•36218 - Motor
•
APPLICATION: (Will repair the following Salt Spreaders)
•TGS01, TGS01A, TGS01B, TGS05A, TGSUVPRO, TGUVPROA
for Repairing Buyers and Meyers Salt Spreaders
THESE ARE REPLACEMENT PARTS FOR REPAIRING MEYER SPREADERS. THESE ARE NOT GENUINE MEYER PARTS. IF YOU ARE INTERESTED IN A KIT WITH ALL GENUINE MEYER PARTS, PLEASE EMAIL ME, steno1024 at yahoo dot com
•
•36152 - Hub
•36218 - Motor
•REPLACES PART #'S:
•36218
•36152
